Images

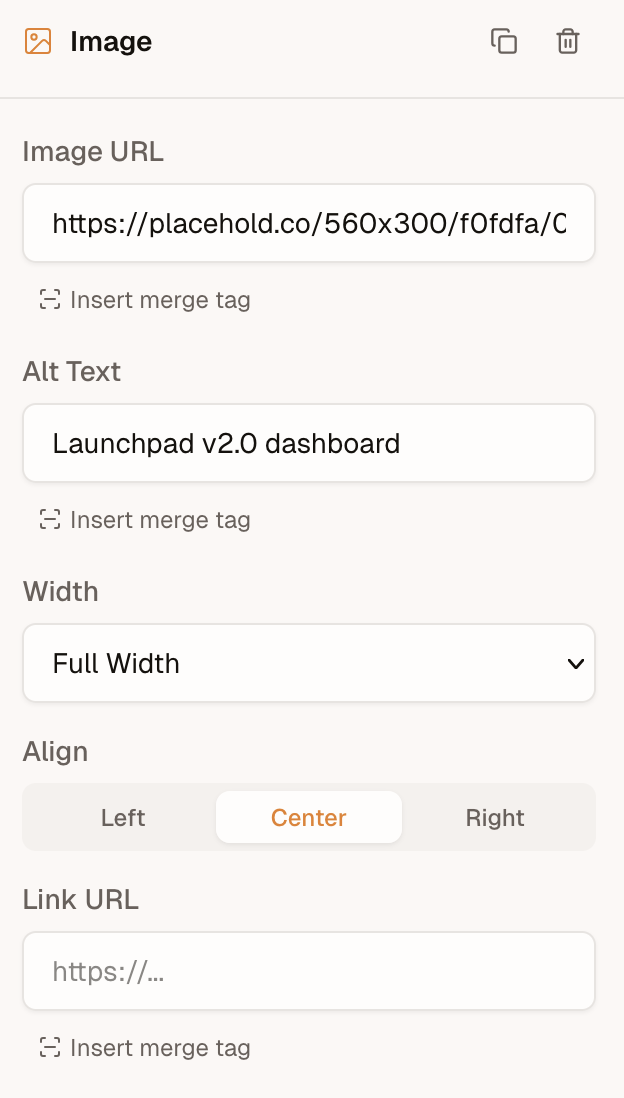

When a user adds an image block, the editor shows a text field where they can paste an image URL. The image block toolbar exposes fields for src, alt, width, align, and an optional linkUrl.

Custom Media Picker

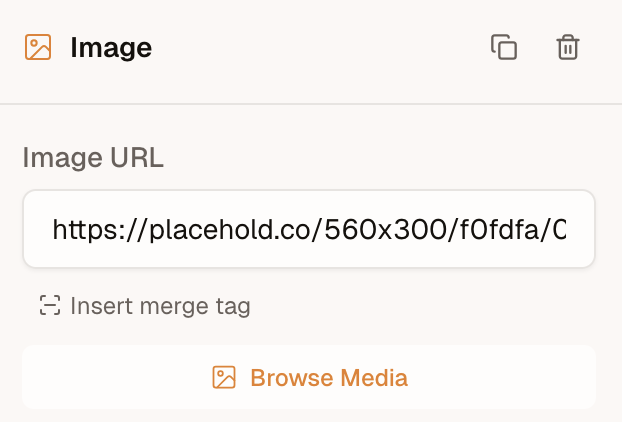

When the onRequestMedia callback is provided, a browse button appears alongside the URL input.

The editor calls this function whenever the user clicks the button. Return a MediaResult object, or null if the user cancels. When alt is provided, the editor automatically fills in the image's alt text.

import { init } from '@templatical/editor';

const editor = await init({
  container: '#editor',
  async onRequestMedia() {
    // Open your own modal, file browser, or asset manager
    const image = await openMyMediaModal();
    if (!image) return null;

    return { url: image.url, alt: image.alt };
  },
});

The type signature:

interface MediaResult {
  url: string;
  alt?: string;
}

interface MediaRequestContext {
  /** Media categories the editor is asking for (e.g. `['images']`). */
  accept?: MediaCategory[];
  /**
   * Files dragged directly onto an image block or field. Present only for
   * drag-and-drop requests; absent when the user clicks "Browse Media".
   */
  files?: File[];
}

onRequestMedia?: (context?: MediaRequestContext) => Promise<MediaResult | null>;

Drag and drop to upload

Users can drag an image file from their computer straight onto an image block (empty or filled), the sidebar image field, or a custom block's image field. When they do, the editor calls the same onRequestMedia handler — but with the dropped file in context.files:

const editor = await init({
  container: '#editor',
  async onRequestMedia(context) {
    // A file was dropped — upload it and return its hosted URL.
    if (context?.files?.length) {
      const url = await uploadToMyBackend(context.files[0]);
      return { url };
    }

    // No file — the user clicked "Browse Media". Open your picker.
    const image = await openMyMediaModal();
    return image ? { url: image.url, alt: image.alt } : null;
  },
});

The editor never uploads anything itself — it hands you the File and uses whatever URL you return, exactly like the Browse Media path. A few notes:

• One file per drop. files is an array for forward-compatibility, but the editor currently sends a single file (files[0]).
• Images only. The editor pre-filters dropped files to image MIME types before calling you.
• No handler, no drop. If onRequestMedia isn't provided, the drop affordance doesn't appear and drops are ignored.
• Don't return a blob: URL. URL.createObjectURL(file) is session-local and breaks export. Upload the file and return a durable URL (or a data: URL).

For Cloud editors, dropped files upload to your Templatical media library automatically — no onRequestMedia needed (a custom handler still takes precedence).

Image Block Properties

The ImageBlock type defines all configurable properties:

Property	Type	Description
src	string	Image source URL
alt	string	Alt text for accessibility
width	number | 'full'	Image width in pixels, or 'full' for 100%
align	'left' | 'center' | 'right'	Horizontal alignment
linkUrl	string (optional)	Wraps the image in a link
linkOpenInNewTab	boolean (optional)	Opens the link in a new tab
placeholderUrl	string (optional)	Design-time preview image when src uses a merge tag

Placeholder URL

When the src field contains a merge tag (e.g., {{product.image}}), the actual image won't render in the editor. Use placeholderUrl to provide a placeholder image in the editor. This value is not included in the exported output.

Best practices

• Use absolute URLs -- Relative paths won't resolve in email clients. Always use https:// URLs.
• Prefer PNG or JPG -- SVG and WebP have limited email client support. Use PNG for graphics with transparency, JPG for photos.
• Keep file sizes reasonable -- Large images slow down loading for recipients.
• Always set alt text -- Many email clients (especially Outlook) block images by default. Recipients see the alt text until they choose to load images.
• Set explicit width -- Email clients may render images at their native size if no width is specified, breaking your layout on small screens.
